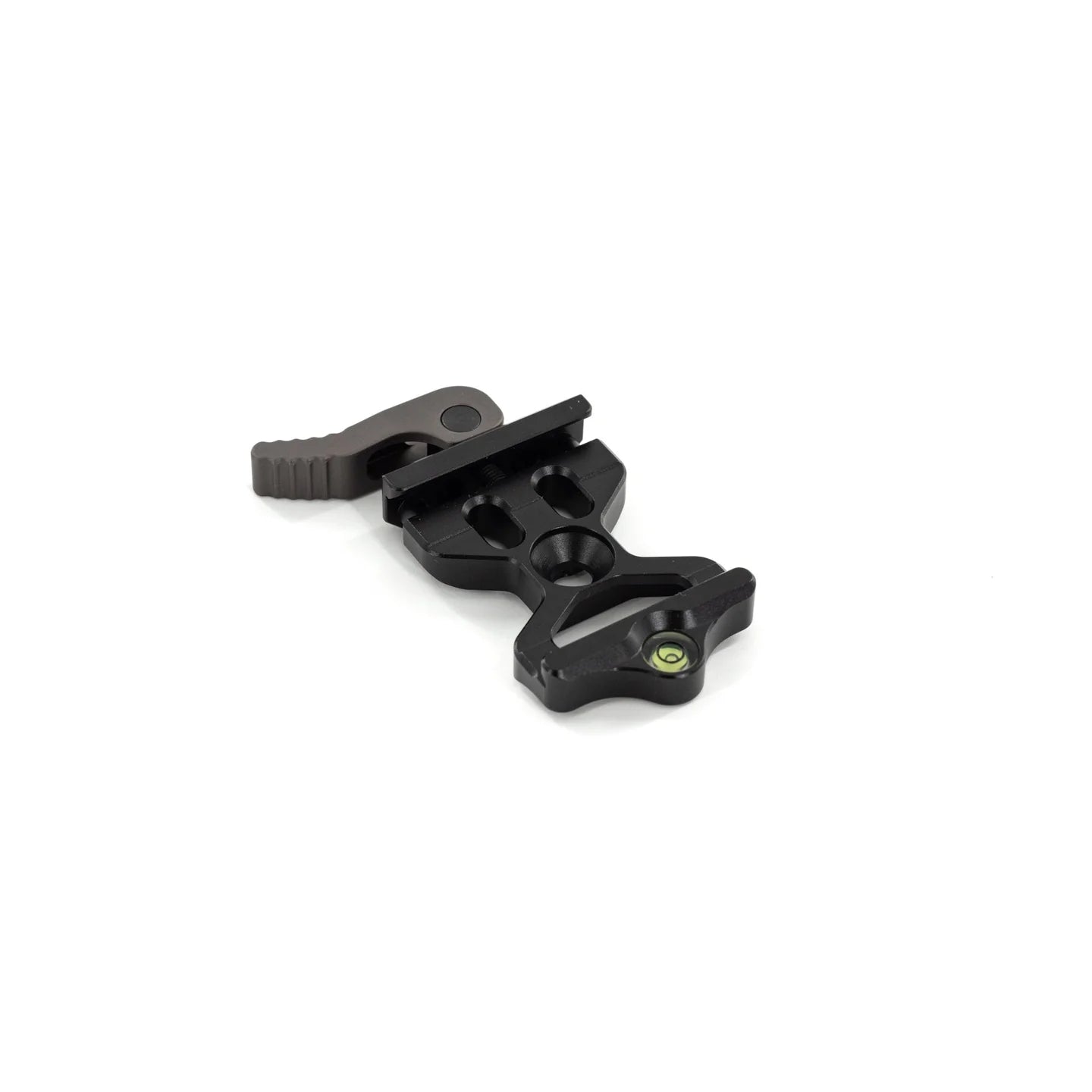

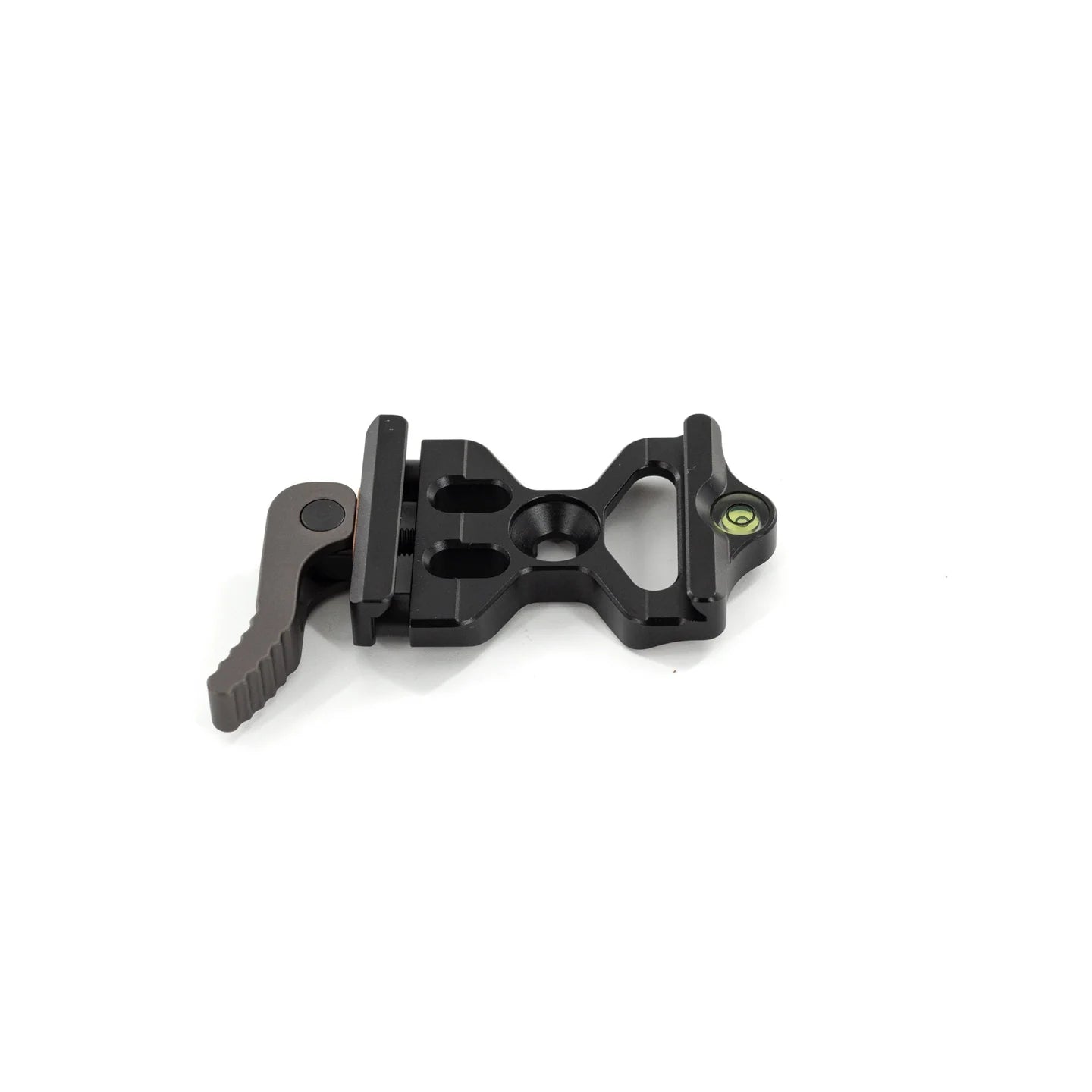

The Aziak Equipment Arca Lever Clamp can replace the existing arca base plate on any Aziak Equipment ball head. Rather than a twist lock it is a cam over lever lock, with adjustable tension via the included 3mm hex key.
Weight - 0.8 oz
To Install:
- Mount ball head clamp on current ball head into vise to hold it securely.
- Use tight fitting 4mm hex key (Included with your tripod when purchased) in flat head bolt attaching arca clamp to ball.
- Optional, but recommended - apply heat to this flat head screw as it is thread locked in place. Heat will significantly reduce chance of stripping bolt head and require less torque to remove.
- Unthread flat head bolt and remove existing arca base plate from head.
- Reverse above directions to install arca lever lock base plate, apply fresh thread locker to flat head bolt.
